Z3L6-2020
ZHONGJI INTELLIGENT
Product Advantages

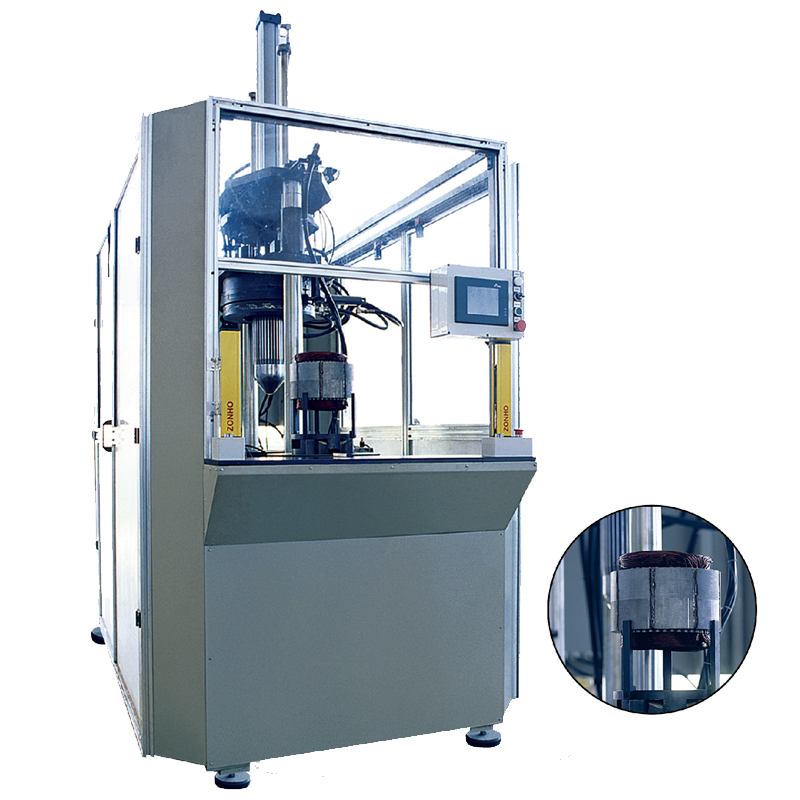

With hydraulic transmission, pneumatic and PLC integrated control, the automatic shaper adopts the internal expanding and external contracting mechanism to shape the inner diameter, outer diameter and end height of stator end coils only once after wire inserting, with single - tooth slot insulation protective device. Equipped with a vertical double - station turntable system, it is easy to operate and high - efficient.
Product parameters
| Parameter | Z4L4-4015 |
| Stator Lamination Thickness | 60-160mm |
| Min.Internal Diameter of Stator | 80mm |
| Max.External Diameter of Stator | 220mm |
| Power Source | Three-phase four-wire380V 50Hz |
| Power | 4KW |
| Tact Time | <30sec/set |
| Weight | 3230kg |
| Pressure of Air Supply | 0.6-1mpa |
| Dimension (Lx W xH) | 2600 x544 x3130 mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
