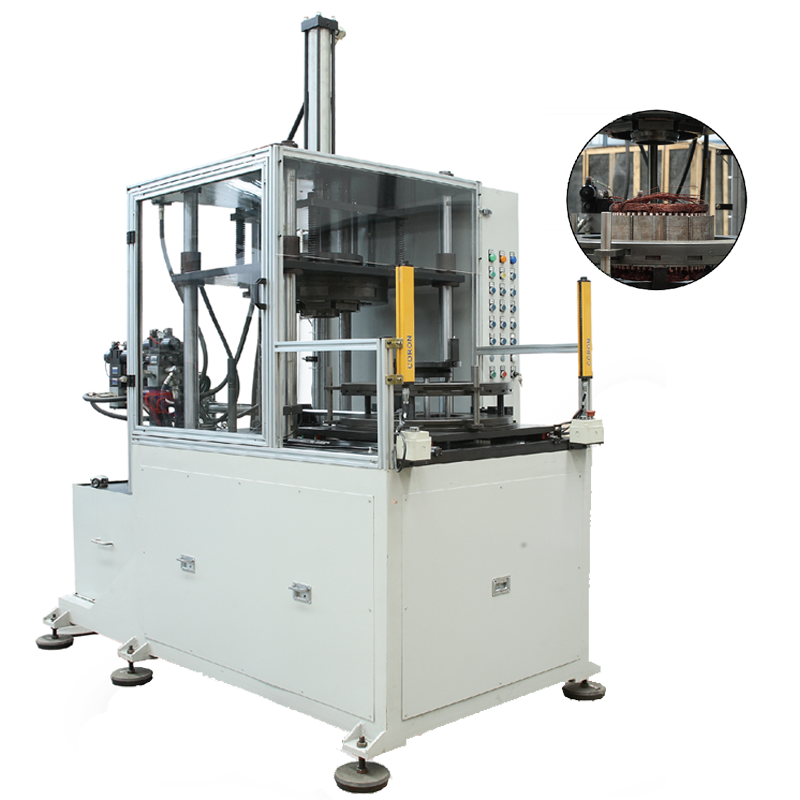

Z3L5-2529
ZHONGJI INTELLIGENT
Product Advantages
With hydraulic transmission Electrical integrated control, the automatic shaper adopts the internal expanding and external collecting mechanism to shape the inner diameter, outer diameter and end height of stator end coils only once after wire inserting. It is used scaling mechanism for the coil excircle, at the same time, it adds single - tooth slot, insulation - protective device, stator driving and reversing mechanism, stator ejector. The machine is convenient for operation safety, it's adaptable for inter - mediate shaping before stator end coil lacing.
Product parameters
| Parameter | Z3L5-2529 |
| Stator Stack Height | 45-250mm |
| Min Inner Dia. Of Stator | φ40mm |
| Power Source | Three-phase four-wire380V 50Hz |
| Power | 4KW |
| Tact Time | 30sec/set |
| Max Shaping Force | 30KN |
| Weight | 2780kg |
| Dimension (Lx W xH) | 2372x1480x3360mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
