Z3L5-1012 Z3L5-1020
ZHONGJI INTELLIGENT
Product Advantages

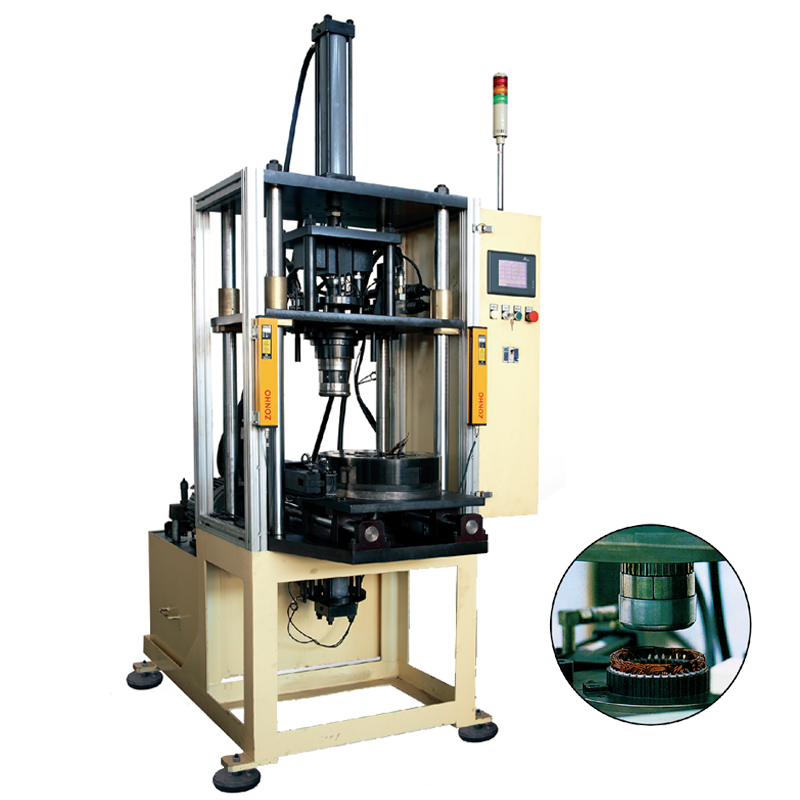

In hydraulic transmission and PLC integrated control, the automatic shaper is equipped with man - machine control interface. Adopting the internal expanding and external contracting mechanism, it shapes the inner diameter, outer diameter and end height of stator end coils only once after wire inserting. It also has the function of slot wedge expansion & compaction. It is also equipped with automatic driving and reversing mechanism for stator stations. It is mainly suitable for the shaping of stator end coils of automobile generators.
Product parameters
| Parameter | Z3L5-1012 | Z3L5-1020 |
| Stator Lamination Thickness | 20-40mm | 20-40mm |
| Min.Internal Diameter of Stator | 80mm | 80mm |
| Max.External Diameter of Stator | 160mm | 200mm |
| Power Source | Three-phase four-wire380V 50Hz | Three-phase four-wire380V 50Hz |
| Power | 6KW | 6KW |
| Tact Time | <30sec/set | <30sec/set |
| Weight | 1530kg | 1530kg |
| Dimension (Lx W xH) | 1500 x1180 x2435 mm | 1500x1180x2435 mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
