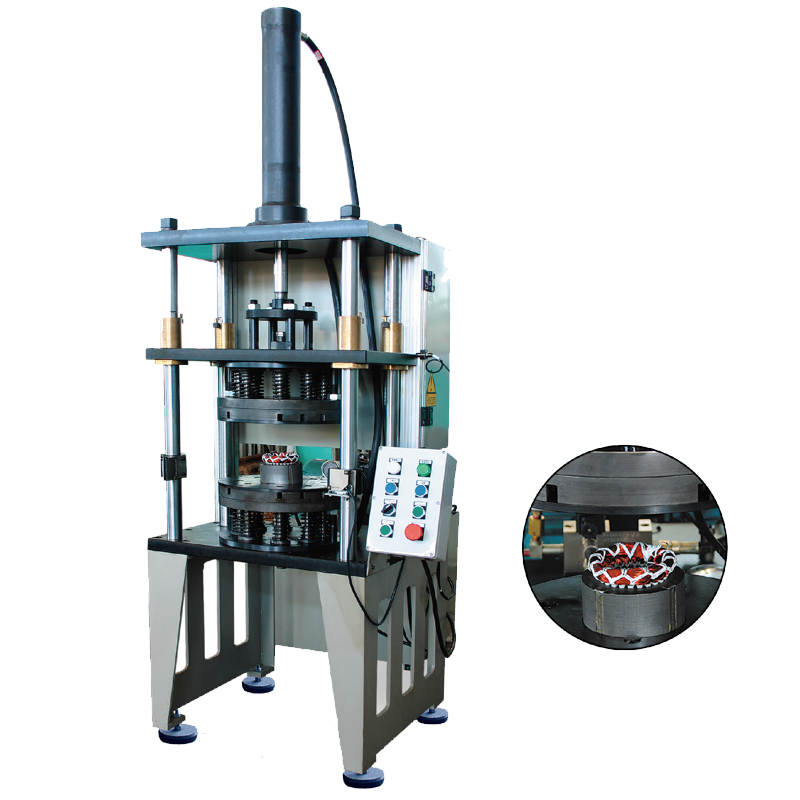

Z4L4-4015
ZHONGJI INTELLIGENT
Product Advantages
The automatic shaper is in hydraulic transmission and electric integrated control. Adopting the internal expanding and external contracting mechanism, it can shape the inner diameter, outer diameter and end height of stator end coils only once after inserting and binding. With a simple structure, it is easy to operate.
Product parameters
| Parameter | Z4L4-4015 |
| Stator Lamination Thickness | 20-120mm |
| Min.Internal Diameter of Stator | 45mm |
| Max.External Diameter of Stator | 160mm |
| Power Source | Three-phase four-wire380V 50Hz |
| Power | 2KW |
| Tact Time | <15sec/set |
| Weight | 709kg |
| Dimension (Lx W xH) | 1015 x830 x2300 mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
