Z4L6-4010
ZHONGJI INTELLIGENT
Product Advantages

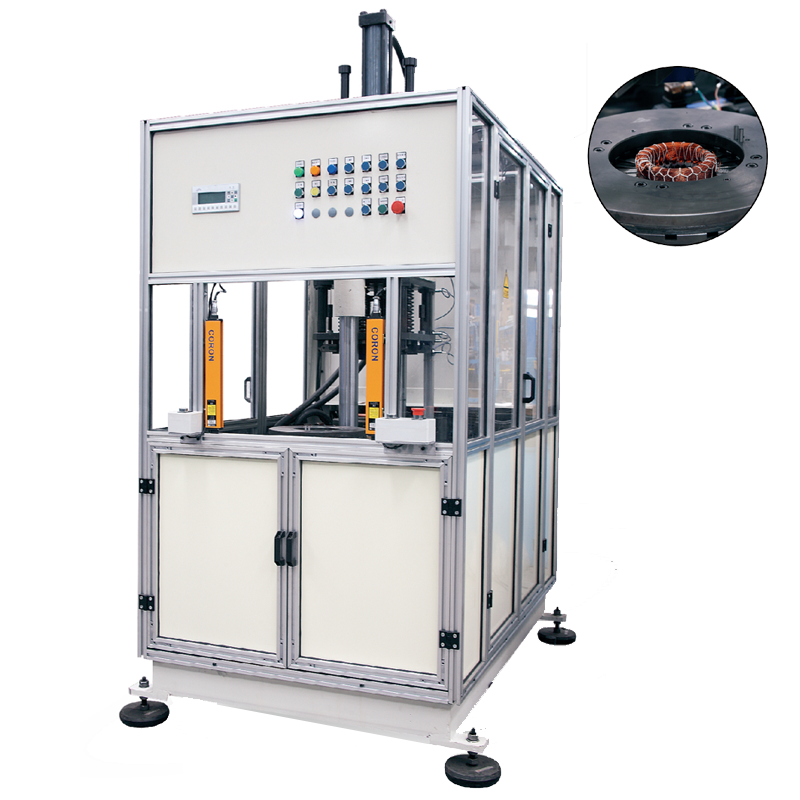

The automatic shaper is in hydraulic transmission and PLC combination control. Adopting the internal expanding and external collecting mechanism to facilitate adjustment, it can shape the inner diameter, outer diameter and end height of stator end coils only once after banding, with a single - tooth - slot insulation protective device. Equipped with a vertical double - station turntable system, it is easy to operate and high - efficient.
Product parameters
| Parameter | Z4L6-4010 |
| Stator Lamination Thickness | 20-130mm |
| Min.Internal Diameter of Stator | 45mm |
| Max.External Diameter of Stator | 160mm |
| Power Source | Three-phase four-wire380V 50Hz |
| Power | 7KW |
| Tact Time | ≤15sec/set |
| Weight | 2460kg |
| Pressure of Air Supply | 0.6-1mpa |
| Dimension (Lx W xH) | 1843 x1280x2762mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
