How to Choose a Slot Insulation & Inserting Machine for Efficient Production

In electric motor manufacturing, slot insulation and inserting machines are vital for ensuring that stator and rotor slots are properly insulated. Correct insulation enhances motor efficiency, extends service life, and reduces the risk of electrical failures. Selecting the right machine is not just about purchasing equipment; it is a strategic decision that affects productivity, product quality, and operational costs. This guide provides an educational overview to help procurement manager make informed decisions.

Understanding Slot Insulation and Its Importance

Slot insulation involves placing insulating materials, such as paper, film, or composite layers, into stator or rotor slots. This prevents electrical shorts and ensures the reliability of the motor during operation. There are typically two insertion methods:

1. Continuous insertion: Efficient for uniform slot designs in high-volume production lines.

2. Intermittent insertion: Suitable for complex or non-standard slot geometries, offering flexibility for mixed-production lines.

For manufacturers with high-mix production, the ability to switch between insertion modes is critical to maintaining efficiency without sacrificing quality.

Key Factors to Consider When Choosing a Machine

When evaluating slot insulation and inserting machines, it's important to focus on functionality that impacts production efficiency, quality, and maintenance. Here are some primary considerations:

Slot Compatibility and Insertion Modes

Machines should accommodate various slot shapes and sizes. Intermittent insertion functionality is essential for adapting to cores with different slot counts or geometries. This flexibility reduces downtime when switching between products.

Precision and Stability

Misaligned insulation can cause rework and scrap, increasing costs. Machines with robust frames, precise guides, and stable mechanisms ensure consistent quality. Advanced models may include real-time sensors to monitor insertion accuracy.

Operation and Maintenance

User-friendly machines reduce labor requirements and downtime. Features to look for include:

• Intuitive controls and adjustable settings

• Quick mould or toorling changes

• Easy access to maintenance points

These factors are especially important for mass production lines, where uptime directly impacts output and profitability.

Throughput and Production Capacity

Production volume dictates machine choice:

• High-volume lines: Machines optimized for speed and continuous insertion.

• Medium-mix lines: Machines with modular tooling and adjustable insertion modes.

• High-mix or R&D lines: Machines with flexible, adaptable designs capable of handling multiple slot types.

Machine Comparison Table

This table helps manufacturers quickly assess which machine type aligns with their production scenarios.

Practical Example – C1W1-3410 Machine

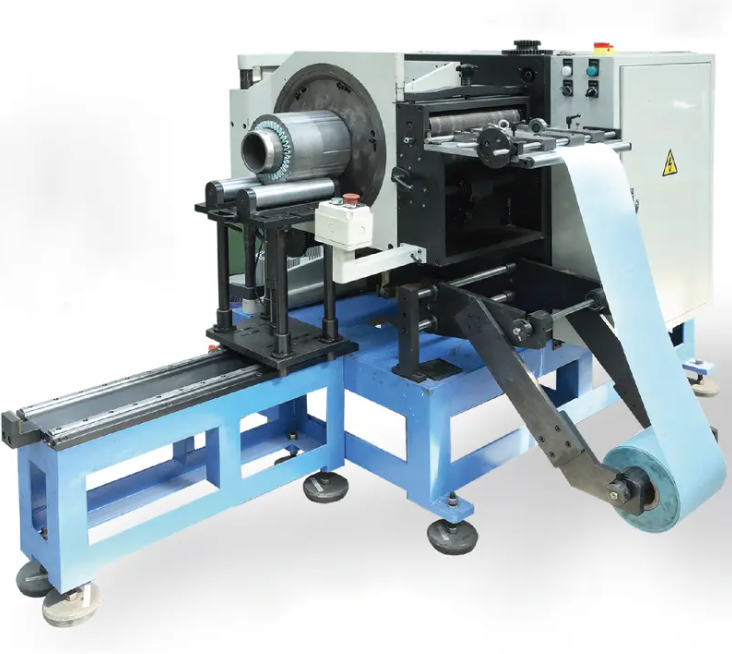

The C1W1-3410 machine from Zhongji demonstrates the capabilities manufacturers should consider. Its features include:

• Intermittent slot insulation: Can handle cores with varying slot counts.

• Quick mould adjustment: Enables fast changeover between products.

• High stability: Maintains precision during high-speed operation.

• User-friendly operation and maintenance: Minimizes training requirements and reduces downtime.

These characteristics make it an ideal example for factories seeking flexibility, precision, and efficiency in mass production environments.

Evaluating Machines Based on Production Scenarios

Choosing a machine depends on your production context:

1. High-volume, single-product lines: Prioritize speed and consistent insertion with fixed tooling.

2. Medium-mix production: Focus on machines that balance speed and flexibility with modular tooling.

3. High-mix or R&D lines: Require adjustable, versatile machines capable of handling multiple slot geometries and insertion modes.

By aligning the machine with your production scenario, you ensure efficient operations and consistent quality.

Cost Considerations Beyond Purchase Price

Total cost of ownership (TCO) should be a primary concern:

• Downtime costs: Include tooling changes and maintenance.

• Rework and scrap: Result from inaccurate insulation.

• Labor and training: Factor in operator skill and supervision.

• Energy efficiency: Affects operational costs over time.

Investing in machines that combine stability, flexibility, and user-friendly operation often reduces long-term costs, despite higher initial investment.

Summary Table – Key Selection Criteria

These criteria provide a clear framework for manufacturers evaluating potential machines.

Conclusion

Selecting a slot insulation and inserting machine requires careful evaluation of production requirements, slot geometry, throughput, flexibility, and maintenance capabilities. Machines like the C1W1-3410 type demonstrate how modern equipment can deliver precision, efficiency, and ease of use, helping manufacturers maintain high-quality standards while reducing operational costs. By understanding these core principles, procurement teams can make informed decisions, ensuring their production lines are efficient, reliable, and scalable.

For more information on slot insulation and inserting machines suitable for various production needs, visit Zhongji Intelligent Equipment
