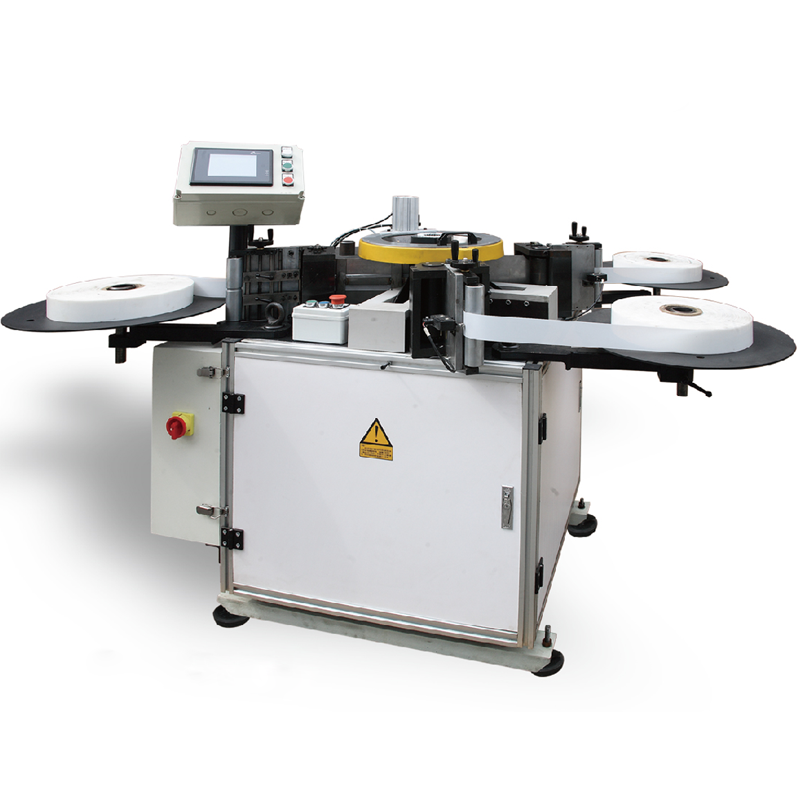

C1L7-1405
ZHONGJI INTELLIGENT
Product Advantages
Equipped with man - machine interface, it is endowed with the functions of status display, failure warning and various parame-ter settings, etc, and suitable for one - time inserting of slot insulation materials of various small motor stators, with high efficiency and easy operation.
C1L7-1405 adopts actuating motor transmission with monitor controller. Lamination press ring can be custom - made.
Product parameters
| Parameter | C1L7-1405 |
| Max. Stator Inside Dia. | 50-100mm |
| Max. Outside Dia. | 180mm |
| Stator Lamination Thickness | 20-130mm |
| Stator Slots | 18-48 |
| Tact Time | 0.5s/slot |
| Feeding Length | Arbitrary set |
| Hemming Width | 2-5mm |
| Thickness of Insulation Paper | 0.18-0.3mm |
| Slot Shape | 1-3 kinds |
| Power Source | three-phase four-wire380v50hz |
| Power | 5.5KW |
| Pressure of air supply | 0.6-1mpa |
| Weight | 1250kg |
| Dimension (Lx W xH) | 1790 x 1700 x 1750mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
