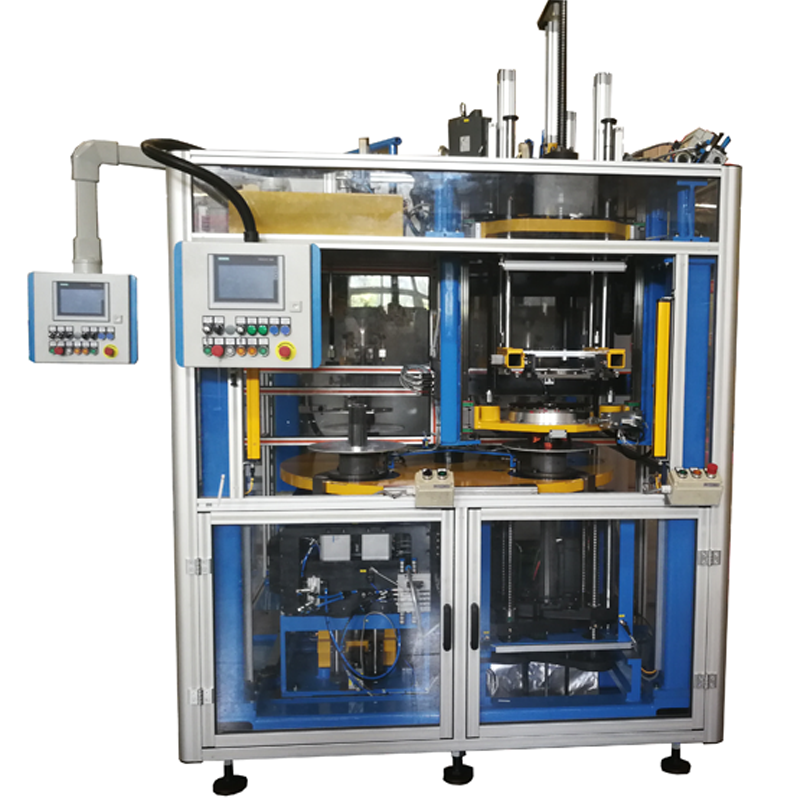

RK6-1236A
Product Advantages
It is electromechanically driven and controlled by a microprocessor.
This machine can insert coils of any number of poles.
The turntable station with the inserting head rotates to the slot wedge forming unit, and then the corresponding number of slot cover papers are inserted (the quantity of slot cover papers depends on the type of motor, the number of slots, and the stack thickness).
After inserting the slot cover papers, the head rotates to the inserting position.
Coils and slot wedges can be inserted into the stator.
Product parameters
| Parameter | RK6-1236A |
| The minimum aperture of the stator | Φ42-70mm |
| Suitable for the maximum outer diameter of the stator | Φ360mm |
| Suitable for the range of stator stack thickness | 20 - 120mm |
| Power Source | Three-phase five-wire380V 50Hz |
| Power | 26kW |
| Air Supply | 6 bar +/- 0.2 bar (87 PSI +/-3 PSI) |
| Suitable for the production rhythm | 20s/Unit |
| Weight | 2400kg |
| Dimension (Lx W xH) | 2570x1700x2880mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
