RR2-0520
ZHONGJI INTELLIGENT
Product Advantages

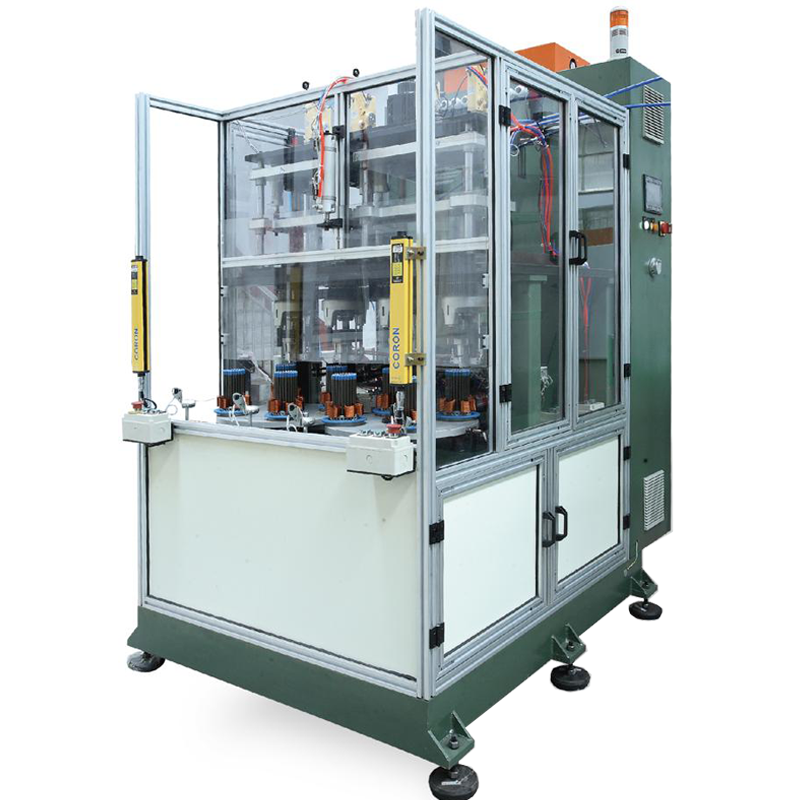

It’s a four-head vertical winding machine, equipped with mechanical pneumatic and AC servo system, motion controller systems. It is easy for the machine to change the parameters, such as high/low speed and turns. And it’s endowed with the display function of dynamic turns, actual turns, set turns, failure causes, able to exactly wind coils onto the forklike flywheel and easily transfer the coil to coil inserter, and have the advantages of high working efficiency.
Product parameters
| Parameter | RR2-0520 |
| Windind Speed (Max) | 2500 r/min(according to coil condition) |
| Adaptable Wire | φ0.3 ~φ1.2 mm |
| Power Source | Three-phase380v50HZ |
| Power | 9KW |
| 0.6-1mpa | |
| Weight | 2000kg |
| Dimension (Lx W xH) | 2100 x 1300x 2200mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
