R1L9 - 1035 R1L9 - 1650
ZHONGJI INTELLIGENT

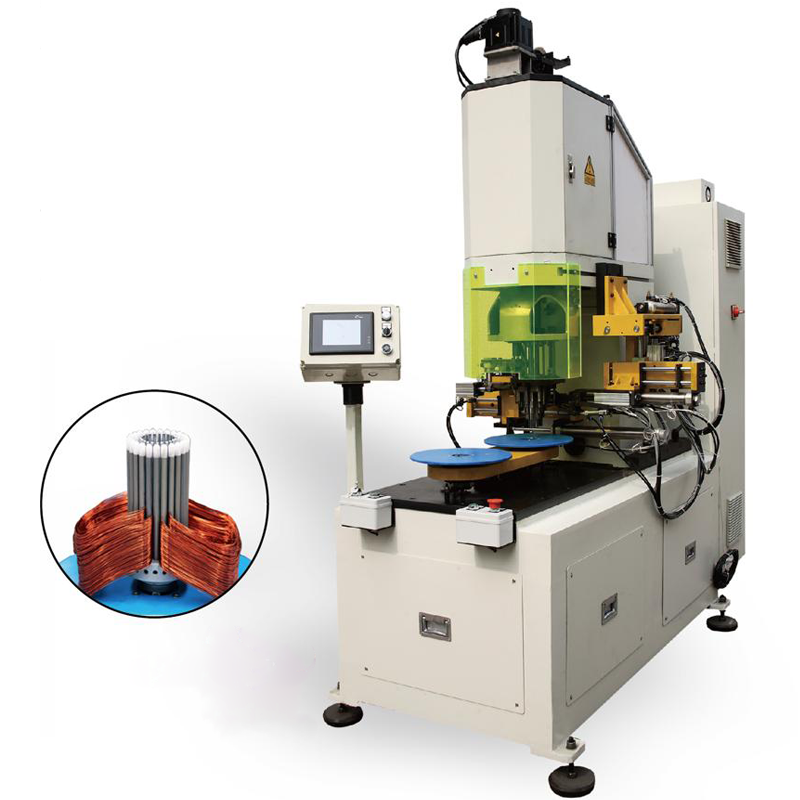

Product Advantages
Equipped with a mechanical transmission system, a pneu - matic system, an AC servo system and an industrial programmable PLC system, it is easy for the machine to change the parameters, such as high/low speed and turns. And it is endowed with the display function of dynamic turns, actual turns, set turns, failure causes and position self - check.
Product parameters
| Parameter | R1L9 - 1035 | R1L9 - 1650 |
| Max Windind Speed | 2500rpm | 1000rpm |
| Suitable Wire Diameter | 0.3 -1.2 mm | 0.3 -1.2 mm |
| Turn Counting Precision | ±0.0turn | ±0.0turn |
| Total Number of Turns | 0-9999turn | 0-9999turn |
| Power Source | Three-phase380v50HZ | Three-phase380v50HZ |
| Power | 9KW | 9KW |
Pressure of Air Supply | 0.6-1mpa | 0.6-1mpa |
| Weight | 1810kg | 2080kg |
| Dimension (Lx W xH) | 2000x2000x2260mm | 3900 x 2300x 1400mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
