Q1W1-1304 Q2W1-3508
ZHONGJI INTELLIGENT
Product Advantages

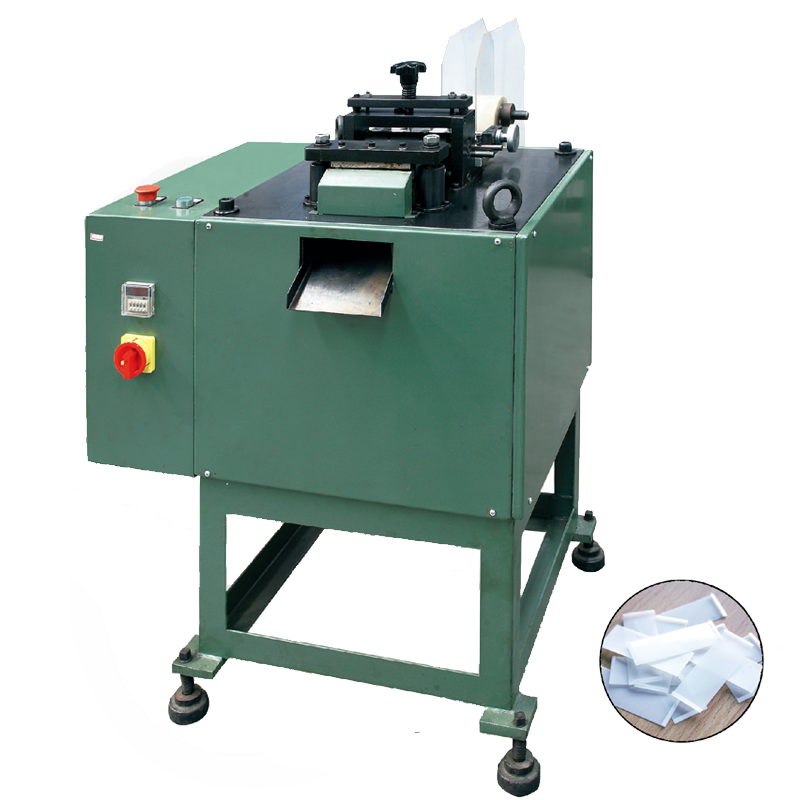

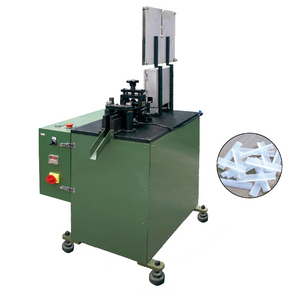

The machine with horizontal structure and mechanical transmission can automatically and continuously complete slot insulation paper hemming, fixed - length feeding and cutting. Applicable to the processing work of various small and medium - sized motor stators and rotor slot insulation, it can satisfy the slot insulation demand when inserting wires by hands in small and medium - sized motors.
Product parameters
| Parameter | Q1W1-1304 | Q2W1-3508 |
| Max.Roll Width | 130mm | 350mm |
| Max.Feeding Length | 50mm | 90mm |
| Hemming Height | 2-5mm | 3-6mm |
| Material Thickness | 0.15-0.3mm | 0.15-0.4mm |
| Power Source | 3-phase 380v 50HZ | 3-phase 380v 50HZ |
| Power | 0.75KW | 0.75KW |
| Tact Time | 0.39s/sheet | 0.7s/sheet |
| Weight | 270kg | 420kg |
| Dimension (L xW x H) | 960x720x940mm | 1205 x805 x865mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
