RNL-2-1305 RNL-1-1210 RNL-3-1305 RNL-4-1305
ZHONGJI INTELLIGENT
Product Advantages

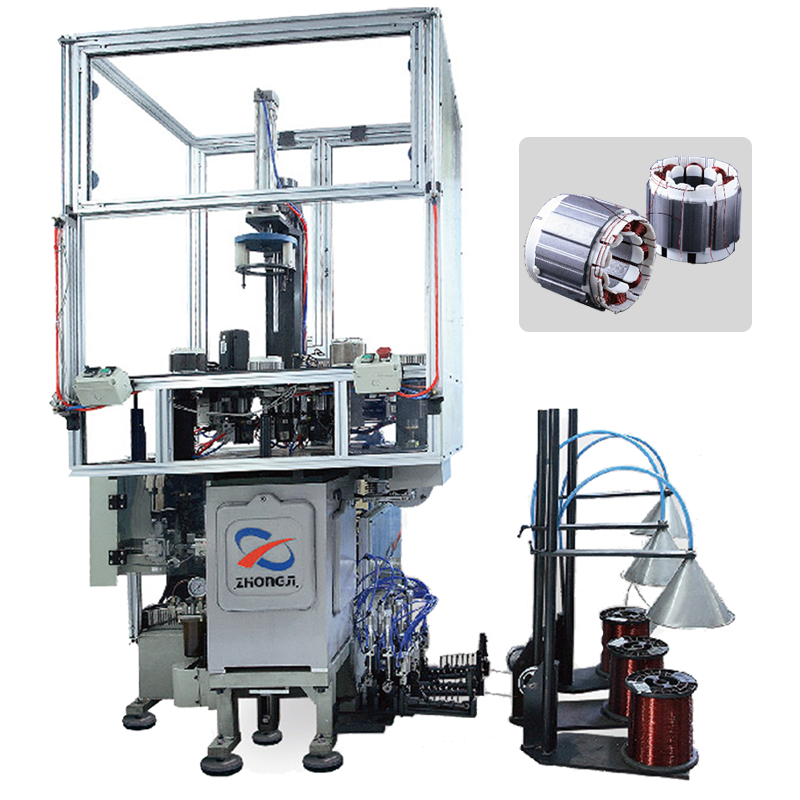

It is suitable for stator winding and inserting (copper wire, aluminium wire) of series motor, brush - less motor, stepper motor.
Product parameters
| Parameter | RNL-2-1305 | RNL-1-1210 | RNL-3-1305 | RNL-4-1305 |
| Adaptable poles | ≥4 | ≥4 | ≥4 | ≥4 |
| Max Winding Speed | 1260rpm | 1200rpm | 1200rpm | 700rpm |
| Cord Pendulum Angle | 0~90° | 0~180° | 0~90° | 0~180° |
| Suitable Stack Height | 0~89mm | 0~159mm | 0~184mm | 0~260mm |
| Stator Inner dia | 5~114mm | 9.5~152mm | 9.5~152mm | 9.5~152mm |
| Stator Outer Dia | 25~203mm | 25~203mm | 25~203mm | 25~203mm |
| Suitable Wire Dia | 0.079~0.634 | 0.127~1.45 | 0.127~1.45 | 0.127~1.628 |
| Main Spindle(Number) | 1 | 1or2 | 1or2 | 1 |
| Needle(Cord) | 1-3 | 1-6 | 1-6 | 1-3 |
| Weight | 1600kg | 1600kg | 1600kg | 1600kg |
| Dimension (L x W x H) | 1400x2000x2300mm | |||
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
