B1L7 - 4525
ZHONGJI INTELLIGENT
Product Advantages

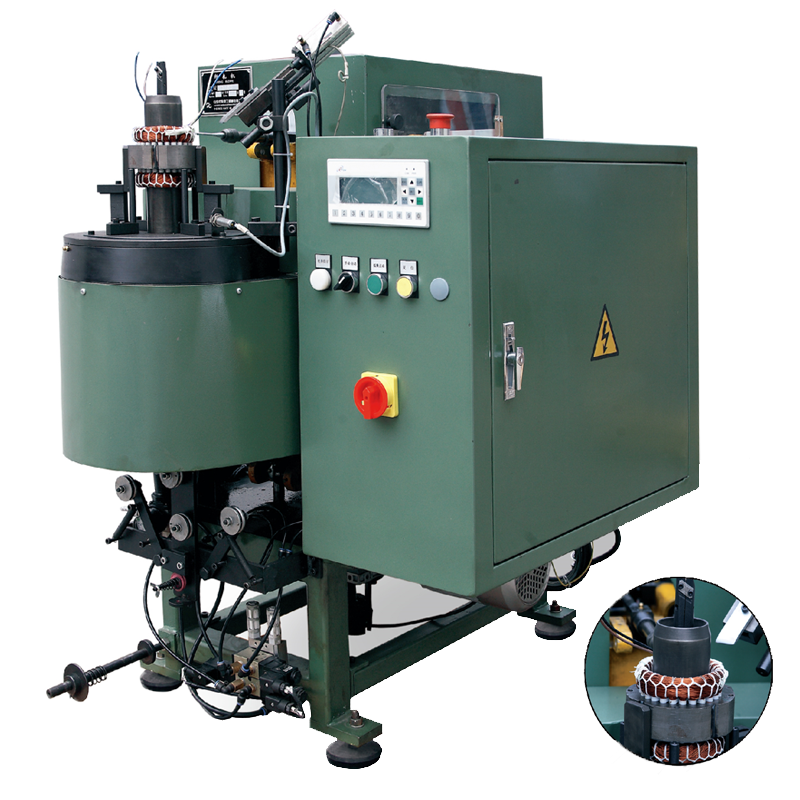

The double - end automatic banding machine with a vertically placed stator adopts the integrated control of machinery, pneumatic transmission, frequency conversion speed regulator and PLC, suitable for stator banding with longer or more connector lugs outside motors.
Product parameters
| Parameter | B1L7 - 4525 |
| Max Stator Stack Height | 45mm |
| Max.External Diameter of Stator | 160mm |
| Stator Lamination Thicknes | 15-100mm |
| Stator End height | 15-60mm(Custom) |
| Power Source | Single-phase220V 50Hz |
| Power | 1KW |
| Maximum Lacing Speed | 0.5Sec /knot |
| Pressure of Air Supply | 0.6-1mpa |
| Weight | About500KG |
| Dimension(LxWxH) | 980 x880 x1200 mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
