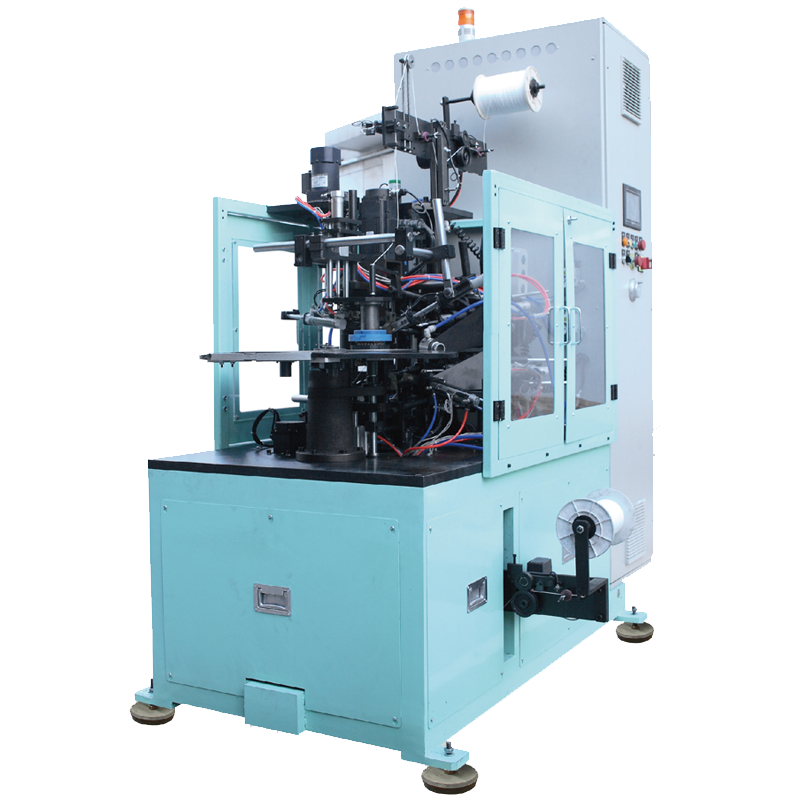

B2L9 - 4525B
ZHONGJI INTELLIGENT
Product Advantages
With application of touch man - machine interface, it has such functions as status display, fault alarm, various parameter settings, etc. It is adaptable for various small and medium - sized motor which is band - ing on both ends, featured by easy operation, high banding quality, easy mold replacement, etc.
Product parameters
| Parameter | B1L7 - 4525 |
| Min Inner Dia. Of Stator | Ф45mm |
| Stator Stack Height | 25~130mm |
Stator SLot | 16-48slots |
| Staor End Height | 15-60mm(Custom) |
| Max Working Speed | 0.5sec/slots |
| Power Source | Three-phase220V 50H |
| Power | 7kW |
Air Supply | 0.6-1mpa |
| Weight | 1500Kg |
| Dimension(LxWxH) | 2040x1027x2390mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
Product Advantages
With application of touch man - machine interface, it has such functions as status display, fault alarm, various parameter settings, etc. It is adaptable for various small and medium - sized motor which is band - ing on both ends, featured by easy operation, high banding quality, easy mold replacement, etc.
Product parameters
| Parameter | B1L7 - 4525 |
| Min Inner Dia. Of Stator | Ф45mm |
| Stator Stack Height | 25~130mm |
Stator SLot | 16-48slots |
| Staor End Height | 15-60mm(Custom) |
| Max Working Speed | 0.5sec/slots |
| Power Source | Three-phase220V 50H |
| Power | 7kW |
Air Supply | 0.6-1mpa |
| Weight | 1500Kg |
| Dimension(LxWxH) | 2040x1027x2390mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
