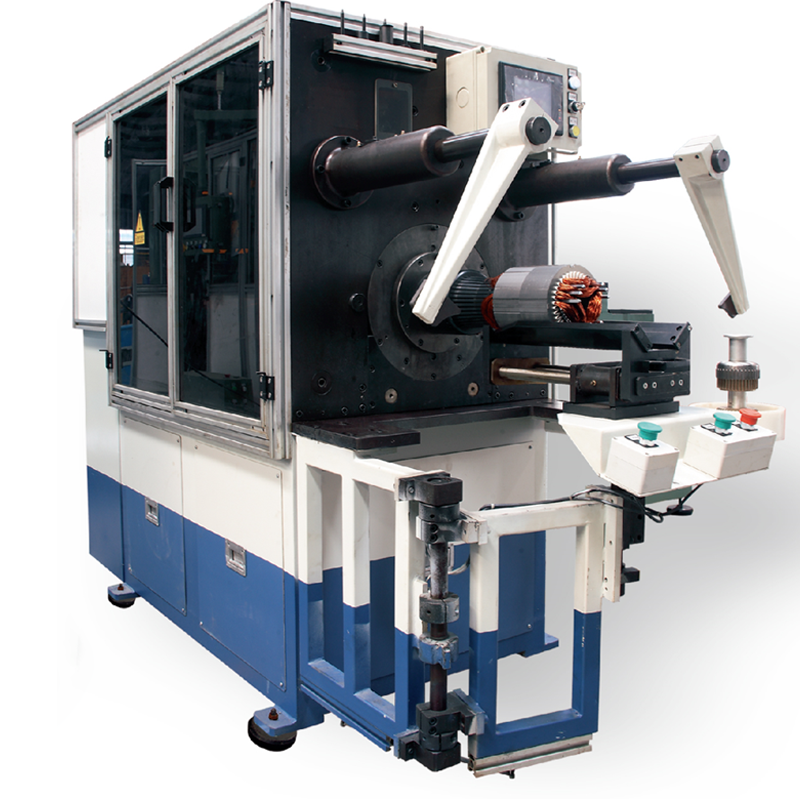

K1W7 - 2116
ZHONGJI INTELLIGENT
Product Advantages
The inserting speed of coil can be set piecewise. Equipped with man - machine interface, it is endowed with the functions of status display, failure warning and various parameter settings, etc., and the advantages of wide application range, high automation degree, easy operation and convenient mold replacement.
Product parameters
| Parameter | K1W7 - 2116 |
| Max.Stator Lamination Thickness | 215mm |
| AdaptationInternal Diameter of Stator | 80-160mm |
| Adaptation slot | 16-48slot |
| Power Source | Three-phase four-wire380V50Hz |
| Power | 4kW |
| Pressure of air Supply | 0.6-1MPa |
| Weight | 1850kg |
| Dimension (Lx W xH) | 3015 x900x1920 mm |
Note: The company reserves the right to change the technical parameters of the product, and the contents are not the basis of ordering and acceptance; specifications are subject to change without further notice.
